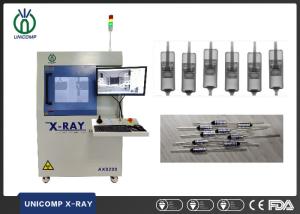

Counterfeit Electronics 0.8kW X Ray Scanner AC110V For Diode Inductor

Brand Name : UNICOMP

Model Number : AX8200

Certification : CE, FDA

Place of Origin : China

MOQ : 1Set

Price : can negotiate

Payment Terms : T/T, L/C

Supply Ability : 300 sets per month

Delivery Time : 30 days

Packaging Details : Wooden Case, Waterproof, Anti-collision

Tube Voltage : 100KV

Industry : Electronics Industry

Size : 1080(L)x1180(W)x1730(H)mm

X-ray Leakage : < 1uSv/h

Weight : 1150kg

Power Consumption : 0.8kW

Contact Now

X-Ray Inspection Machine Electronics BGA Standard Multifunction

Unicomp Technology has a dedicated pool of local and foreign senior professional R & D engineers with extensive experience in high level science and technology. The company is undertaking major national special project (namely “02” project and “863” project) and X-ray detecting equipment R&D in new fields of application. It also works closely with The Chinese academy of sciences, Tsinghua University etc. to advance the core technology of X-ray imaging. Presently Unicomp has submit a total of 256 patents with 199authorized. Unicomp has obtained numerous management system certification, such as ISO 9001 quality management system, ISO 14001 environmental management system, OHSAS18001 occupational health & safety management system, as well as ISO27001 information safety management system.

The AX-8200 machine is designed to provide high resolution x-ray imaging primarily for the electronics industry. This versatile system is effective for many applications within the PCB manufacturing process. This includes BGA, CSP, QFN, Flip Chip, COB and the wide range of SMT components. The AX-8200 is a powerful support tool for process development, process monitoring and refinement of the rework operation. Supported by a powerful and easy to use software interface, the AX-8200 is capable of addressing small and large volume factory requirements. (Contact us for details)


Applications:

  • BGA , CSP , LED , Flip Chip , Semiconductor,
  • Battery Industry , Small Metal Casting,
  • Electronic Connector Module,
  • Aerospace Components , Photovoltaic Industry,
  • Other Special Industries.

System Summary
Footprint 1080(W)×1180(D)×1730(H)mm
Machine Weight 1050 kg
Power Supply AC 110~220V, 50/60Hz
Plywood Packing Size 146(W)×128(D)×196(H)cm
Packing Weight 1160 kg
Power Consumption 1.0 kW
X-Ray Tube
Tube Type Sealed
Max. Power 8W
Voltage 0~90kV (Adjustable)
Focus Spot Size 5μm
Imaging System
Detector Flat Panel Detector (option 4’’ i.i. Detector)
Pixel Size 85μm
Effective Detection Area 130*130mm
Frame Rates 20fps
Pixel Matrix 1536*1536
System Magnification 600X
Software
Auto-measuring BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
CNC Mode CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation Laser Locator for Precise Location
Motion Control System
Movement Control Joystick, Keypad & Mouse
Max. Loading Area/Weight 510*420mm / 10kg
Max. Inspection Area 435*385mm
Oblique Views Max. ±60°
Manipulator 5-axis with X / Y / Z1 / Z2 / T
Industrial PC
Monitor 22’’ FHD LCD Display
System OS Windows 10 64bit
Hard disk 1TB
RAM 8GB
CPU model Intel i7 Processor
Other Features
Energy Saving X-Ray Auto-off when it's out of work over than 5 minutes
Safety Operation Electromagnetic Interlock and warning Light
Portable Design Mounted with Wheels on Machine Bottom
X-Ray Safety <1μSv/h (Meets All International Standards)
* Specifications are subject to change without notice, All trademarks are the property of the system maker.
