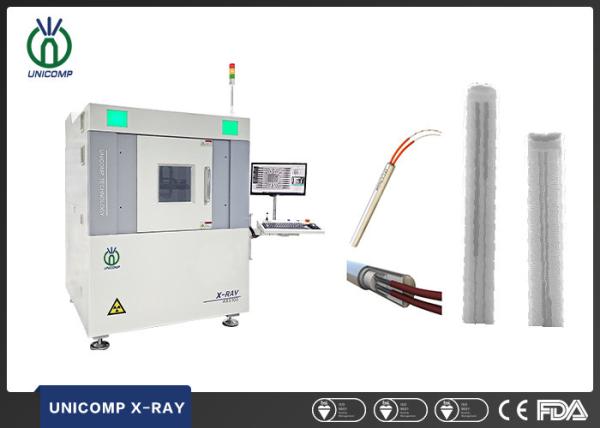

FPD 130kV X Ray Inspection Machine For Cartridge Heater

Product Categories

Unicomp Technology

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: FPD 130kV X Ray Inspection Machine For Cartridge Heater
Brand: Unicomp
Price: 1 USD

Brand Name : Unicomp

Model Number : AX9100

Certification : CE, FCC

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Delivery Time : 45 days

Packaging Details : Polywood case package data:166cm*156cm*195cm total weight:1900KG

Function : PCBA，BGA inspection

Equipment : Quality check

Properties : High-Energy-Ray Medical Equipments

Instrument classification : Class II

Warranty : 12 months

Name : Portable X ray machine

Contact Now

Widely applied for BGA , CSP , Flip Chip, LED , Fuse, Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Aerospace Components, Photovoltaic Industry, etc.

Max. loading area φ570mm, max. inspection area 450mm*450mm, with 1600X Magnification
Tilt detection with 55° and rotation 360°operation together with 6 axis movement
X-ray tube & detector automatic lifting and descending, with convenient target point positioning system
Multi-function DXI image processing system, CNC programmable detection
130kV (Option 110KV) 7µm closed X-ray tube, high speed & Millions pixels high resolution FPD

Item	Description	Specifications
X-Ray Tube	Max. Voltages, Type	130kV (Option 110KV), Closed
	Power Consumption	40W(25W)
	Focal Spot Size	7 μm
	Magnification	1600X
Detector	Detector Type	FPD
	Resolution	101 LP/cm
	Effective Area	116.4mm ×145.7mm
System Computer	Operating System	Industrial PC, Win 7, i7 Processor
System Computer	Monitor	22” LCD
Software	User Interface	Unicomp Multi-function DXI image processing system
Working Platform	Max. Loading Area	φ570mm
	Max. Inspection Area	450mm×450mm
	Max. Loading Weight	10kg
	Movement Control	Joysticks, Mouse and Keypads
	Motion Range (Up and Down)	200mm
	Table Tilting Angle	55° Tilting and 360° Rotation
Navigation	Camera	HD Camera, Laser point
Axis	Manipulator	6-axis with X1/ X2 / Y / Z / T(55°) / R(360°)
Equipment Features	Power Supply	AC 110~220V (±10%) 50Hz, 2.0kW
	Outline Dimensions	1450(W)×1500(D)×1850(H)mm
	System Weight	1900 kg
Optional Accessories	None
Warranty	One year warranty , free replacement the parts due to original manufacturer's defect, but expect of man-made damages and force majeure
